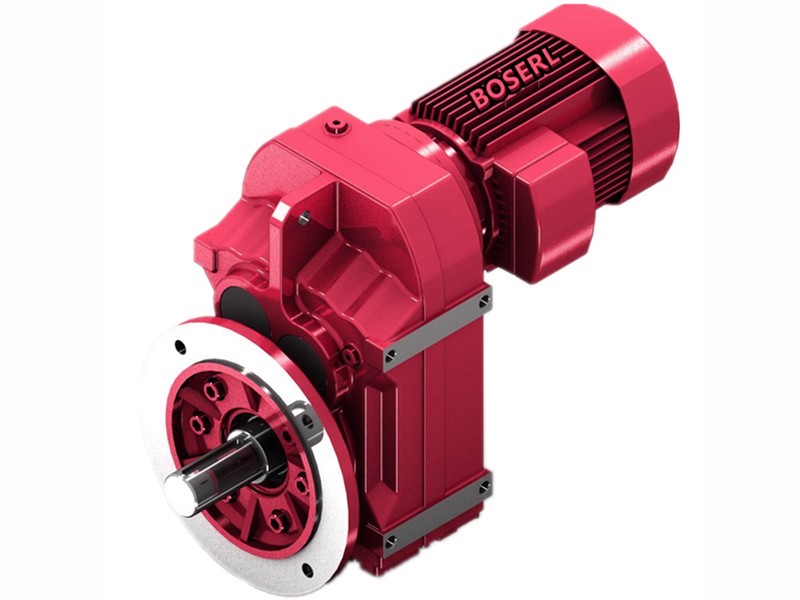

FF38減速電機詳細信息
FF38減速電機
訂購熱線：13360667204
FF38減速電機基座參數計算公式：齒輪減速馬達
轉角滾筒輸送帶參數：負載2600Kg，傳送筒直徑φ53mm，轉動速度0.28m/s
運輸速度0.28m×60s=16.8m每分鐘
3.14(圓周率)×0.053m(傳送筒直徑53mm)=0.16642m
16.8m÷0.16642m=100.95r/min輸出轉數
傳送物料2600Kg換算成N=25480n
25480n×0.0265傳送筒半徑×0.06摩擦系數=40.51×2=81.03N.m輸出扭矩
1400電機輸入轉速÷100.95r/min=13.87減速比
81.03N.m輸出扭矩÷13.87減速比=5.81N.m電機扭矩
5.81N.m電機扭矩?fù)Q算成電機功率=0.93KW左右
對應的FF38減速電機功率型號：
型號：FF38-BEJ1.1KW
減速比：14.33
輸出轉數：99rpm
輸出扭矩：106N.m
安全系數：1.9

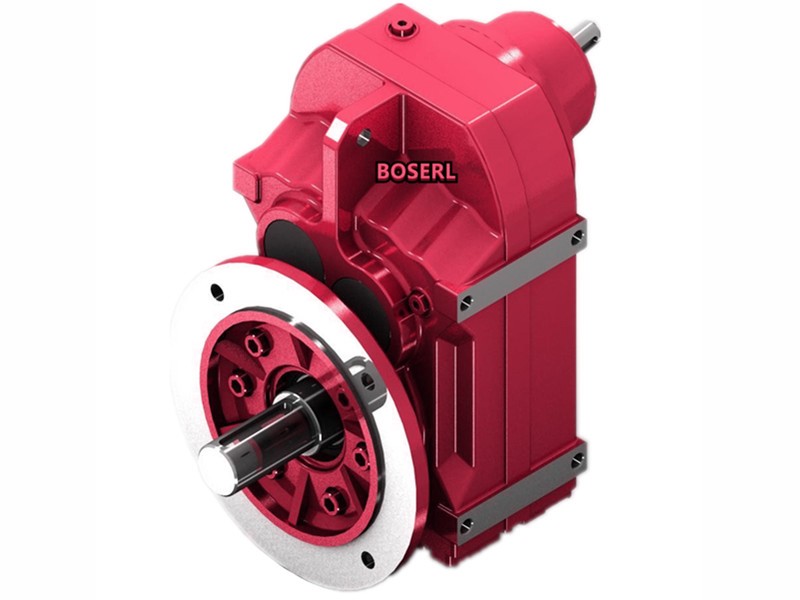

FF38減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機
FF38平行軸減速機型號：
FF38減速電機型號參數：剎車電機減速機
FF38減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y0.12KW | 128.51 | 0.12KW | 18.5Kg | 5220N |
| FF38-Y0.12KW | 117.88 | 0.12KW | 18.5Kg | 5270N |
| FF38-Y0.12KW | 100.36 | 0.12KW | 18.5Kg | 5340N |
| FF38-Y0.12KW | 86.53 | 0.12KW | 18.5Kg | 5400N |
| FF38-Y0.12KW | 80.65 | 0.12KW | 18.5Kg | 5410N |
FF38減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y0.18KW | 128.51 | 0.18KW | 19Kg | 4700N |
| FF38-Y0.18KW | 117.88 | 0.18KW | 19Kg | 4840N |
| FF38-Y0.18KW | 100.36 | 0.18KW | 19Kg | 5040N |
| FF38-Y0.18KW | 86.53 | 0.18KW | 19Kg | 5180N |
| FF38-Y0.18KW | 80.65 | 0.18KW | 19Kg | 5230N |
| FF38-Y0.18KW | 70.50 | 0.18KW | 19Kg | 5300N |
| FF38-Y0.18KW | 66.09 | 0.18KW | 19Kg | 5330N |
| FF38-Y0.18KW | 58.32 | 0.18KW | 19Kg | 5380N |
FF38減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y0.25KW | 128.51 | 0.25KW | 23Kg | 3690N |
| FF38-Y0.25KW | 117.88 | 0.25KW | 23Kg | 4040N |
| FF38-Y0.25KW | 100.36 | 0.25KW | 23Kg | 4500N |
| FF38-Y0.25KW | 86.53 | 0.25KW | 23Kg | 4790N |
| FF38-Y0.25KW | 80.65 | 0.25KW | 23Kg | 4900N |
| FF38-Y0.25KW | 70.50 | 0.25KW | 23Kg | 5060N |
| FF38-Y0.25KW | 66.09 | 0.25KW | 23Kg | 5120N |
| FF38-Y0.25KW | 58.32 | 0.25KW | 23Kg | 5210N |
| FF38-Y0.25KW | 54.54 | 0.25KW | 23Kg | 5260N |
| FF38-Y0.25KW | 51.70 | 0.25KW | 23Kg | 5280N |
| FF38-Y0.25KW | 47.02 | 0.25KW | 23Kg | 5330N |
| FF38-Y0.25KW | 43.83 | 0.25KW | 23Kg | 5360N |
| FF38-Y0.25KW | 38.31 | 0.25KW | 23Kg | 5400N |
| FF38-Y0.25KW | 35.91 | 0.25KW | 23Kg | 5420N |
| FF38-Y0.25KW | 31.69 | 0.25KW | 23Kg | 5440N |
FF38減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y0.37KW | 86.53 | 0.37KW | 23.5Kg | 3960N |
| FF38-Y0.37KW | 80.65 | 0.37KW | 23.5Kg | 4200N |
| FF38-Y0.37KW | 70.50 | 0.37KW | 23.5Kg | 4550N |
| FF38-Y0.37KW | 66.09 | 0.37KW | 23.5Kg | 4680N |
| FF38-Y0.37KW | 58.32 | 0.37KW | 23.5Kg | 4880N |
| FF38-Y0.37KW | 54.54 | 0.37KW | 23.5Kg | 4970N |
| FF38-Y0.37KW | 51.70 | 0.37KW | 23.5Kg | 5030N |
| FF38-Y0.37KW | 47.02 | 0.37KW | 23.5Kg | 5120N |
| FF38-Y0.37KW | 43.83 | 0.37KW | 23.5Kg | 5180N |
| FF38-Y0.37KW | 38.31 | 0.37KW | 23.5Kg | 5270N |
| FF38-Y0.37KW | 35.91 | 0.37KW | 23.5Kg | 5300N |
| FF38-Y0.37KW | 31.69 | 0.37KW | 23.5Kg | 5300N |
| FF38-Y0.37KW | 28.09 | 0.37KW | 23.5Kg | 5140N |
| FF38-Y0.37KW | 23.88 | 0.37KW | 23.5Kg | 4930N |
FF38減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y0.55KW | 58.32 | 0.55KW | 28Kg | 3950N |
| FF38-Y0.55KW | 54.54 | 0.55KW | 28Kg | 4180N |
| FF38-Y0.55KW | 51.70 | 0.55KW | 28Kg | 4340N |
| FF38-Y0.55KW | 47.02 | 0.55KW | 28Kg | 4570N |
| FF38-Y0.55KW | 43.83 | 0.55KW | 28Kg | 4710N |
| FF38-Y0.55KW | 38.31 | 0.55KW | 28Kg | 4920N |
| FF38-Y0.55KW | 35.91 | 0.55KW | 28Kg | 5000N |
| FF38-Y0.55KW | 31.69 | 0.55KW | 28Kg | 4980N |
| FF38-Y0.55KW | 28.09 | 0.55KW | 28Kg | 4860N |
| FF38-Y0.55KW | 23.88 | 0.55KW | 28Kg | 4680N |
| FF38-Y0.55KW | 23.63 | 0.55KW | 28Kg | 4670N |
| FF38-Y0.55KW | 20.57 | 0.55KW | 28Kg | 4520N |
| FF38-Y0.55KW | 19.27 | 0.55KW | 28Kg | 4450N |
| FF38-Y0.55KW | 17.03 | 0.55KW | 28Kg | 4320N |
| FF38-Y0.55KW | 14.33 | 0.55KW | 28Kg | 4130N |
FF38減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y0.75KW | 47.02 | 0.75KW | 29Kg | 3720N |
| FF38-Y0.75KW | 43.83 | 0.75KW | 29Kg | 4000N |
| FF38-Y0.75KW | 38.31 | 0.75KW | 29Kg | 4420N |
| FF38-Y0.75KW | 35.91 | 0.75KW | 29Kg | 4570N |
| FF38-Y0.75KW | 31.69 | 0.75KW | 29Kg | 4590N |
| FF38-Y0.75KW | 28.09 | 0.75KW | 29Kg | 4510N |
| FF38-Y0.75KW | 23.63 | 0.75KW | 29Kg | 4370N |
| FF38-Y0.75KW | 20.57 | 0.75KW | 29Kg | 4260N |
| FF38-Y0.75KW | 19.27 | 0.75KW | 29Kg | 4200N |
| FF38-Y0.75KW | 17.03 | 0.75KW | 29Kg | 4090N |
| FF38-Y0.75KW | 14.33 | 0.75KW | 29Kg | 3930N |
| FF38-Y0.75KW | 12.87 | 0.75KW | 29Kg | 3840N |
FF38減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y1.1KW | 19.70 | 1.1KW | 33Kg | 6470N |
| FF38-Y1.1KW | 31.69 | 1.1KW | 33Kg | 3720N |
| FF38-Y1.1KW | 28.09 | 1.1KW | 33Kg | 3970N |
| FF38-Y1.1KW | 23.88 | 1.1KW | 33Kg | 3930N |
| FF38-Y1.1KW | 20.57 | 1.1KW | 33Kg | 3870N |
| FF38-Y1.1KW | 19.27 | 1.1KW | 33Kg | 3840N |
| FF38-Y1.1KW | 17.03 | 1.1KW | 33Kg | 3770N |
| FF38-Y1.1KW | 14.33 | 1.1KW | 33Kg | 3670N |
| FF38-Y1.1KW | 12.87 | 1.1KW | 33Kg | 3600N |
| FF38-Y1.1KW | 11.08 | 1.1KW | 33Kg | 3490N |
| FF38-Y1.1KW | 10.42 | 1.1KW | 33Kg | 3450N |
| FF38-Y1.1KW | 8.97 | 1.1KW | 33Kg | 3340N |
FF38減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y1.5KW | 20.57 | 1.5KW | 36Kg | 3410N |
| FF38-Y1.5KW | 19.27 | 1.5KW | 36Kg | 3410N |
| FF38-Y1.5KW | 17.03 | 1.5KW | 36Kg | 3390N |
| FF38-Y1.5KW | 14.33 | 1.5KW | 36Kg | 3350N |
| FF38-Y1.5KW | 12.87 | 1.5KW | 36Kg | 3310N |
| FF38-Y1.5KW | 11.08 | 1.5KW | 36Kg | 3240N |
| FF38-Y1.5KW | 10.42 | 1.5KW | 36Kg | 3210N |
| FF38-Y1.5KW | 8.97 | 1.5KW | 36Kg | 3130N |
| FF38-Y1.5KW | 8.01 | 1.5KW | 36Kg | 3070N |
FF38減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y2.2KW | 14.33 | 2.2KW | 45Kg | 2800N |
| FF38-Y2.2KW | 12.87 | 2.2KW | 45Kg | 2810N |
| FF38-Y2.2KW | 11.08 | 2.2KW | 45Kg | 2820N |
| FF38-Y2.2KW | 10.42 | 2.2KW | 45Kg | 2810N |
| FF38-Y2.2KW | 8.97 | 2.2KW | 45Kg | 2790N |
| FF38-Y2.2KW | 8.01 | 2.2KW | 45Kg | 2760N |
| FF38-Y2.2KW | 6.74 | 2.2KW | 45Kg | 2620N |
| FF38-Y2.2KW | 6.05 | 2.2KW | 45Kg | 2590N |
| FF38-Y2.2KW | 5.21 | 2.2KW | 45Kg | 2540N |
| FF38-Y2.2KW | 4.90 | 2.2KW | 45Kg | 2510N |
| FF38-Y2.2KW | 4.22 | 2.2KW | 45Kg | 2450N |
| FF38-Y2.2KW | 3.77 | 2.2KW | 45Kg | 2400N |
FF38減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF38-Y3KW | 11.08 | 3KW | 48Kg | 2340N |
| FF38-Y3KW | 10.42 | 3KW | 48Kg | 2360N |
| FF38-Y3KW | 8.97 | 3KW | 48Kg | 2400N |
| FF38-Y3KW | 8.01 | 3KW | 48Kg | 2410N |
| FF38-Y3KW | 6.74 | 3KW | 48Kg | 2290N |
| FF38-Y3KW | 6.05 | 3KW | 48Kg | 2290N |
| FF38-Y3KW | 5.21 | 3KW | 48Kg | 2280N |
| FF38-Y3KW | 4.90 | 3KW | 48Kg | 2270N |
| FF38-Y3KW | 4.22 | 3KW | 48Kg | 2240N |
| FF38-Y3KW | 3.77 | 3KW | 48Kg | 2210N |
FF38減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：F38減速機
關鍵詞:GFF系列減速器配制動電機一體式_剎車電機減速機_FF系列減速器_制動電機減速機_減速器配抱閘_減速機配抱閘_FF系列減速機_FF型減速機_GFF系列減速機_配剎車減速機_配制動減速機_配抱閘減速機_抱閘電機減速機
FF系列齒輪減速馬達型號：FF28減速機,FF38減速機,FF48減速機,FF68減速機,FF78減速機,FF88減速機,FF98減速機,FF108減速機,FF128減速機,FF158減速機
FF系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
