R88R58減速機詳細信息
R88R58減速機
訂購熱線：13360667204
R88R58減速機電機功率：R88R58Y0.12KW減速機,R88R58Y0.18KW減速機,R88R58Y0.25KW減速機,R88R58Y0.37KW減速機,R88R58Y0.55KW減速機,R88R58Y0.75KW減速機,R88R58Y1.1KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
R87FRF57減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87FRF57-Y0.12KW | 2873 | 0.12KW | 0.48r/min | 1760N.m | 86.5kg | 15200N | 0.90 |
| R87FRF57-Y0.12KW | 1961 | 0.12KW | 0.70r/min | 1300N.m | 86.5kg | 18500N | 1.20 |
| R87FRF57-Y0.12KW | 2595 | 0.12KW | 0.53r/min | 1780N.m | 86.5kg | 15000N | 0.85 |
| R87FRF57-Y0.12KW | 2129 | 0.12KW | 0.65r/min | 1430N.m | 86.5kg | 17700N | 1.10 |
| R87FRF57-Y0.12KW | 1930 | 0.12KW | 0.72r/min | 1270N.m | 86.5kg | 18600N | 1.20 |
| R87FRF57-Y0.12KW | 1733 | 0.12KW | 0.80r/min | 1120N.m | 86.5kg | 19300N | 1.40 |
| R87FRF57-Y0.12KW | 1737 | 0.12KW | 0.79r/min | 1140N.m | 86.5kg | 19200N | 1.35 |
| R87FRF57-Y0.12KW | 1524 | 0.12KW | 0.91r/min | 1000N.m | 86.5kg | 19800N | 1.55 |
| R87FRF57-Y0.12KW | 885 | 0.12KW | 1.60r/min | 580N.m | 86.5kg | 20000N | 2.60 |
| R87FRF57-Y0.12KW | 776 | 0.12KW | 1.80r/min | 510N.m | 86.5kg | 20000N | 3.00 |
| R87FRF57-Y0.12KW | 685 | 0.12KW | 2.00r/min | 450N.m | 86.5kg | 20000N | 3.40 |
| R87FRF57-Y0.12KW | 1303 | 0.12KW | 1.10r/min | 810N.m | 86.5kg | 20000N | 1.90 |
| R87FRF57-Y0.12KW | 1143 | 0.12KW | 1.20r/min | 710N.m | 86.5kg | 20000N | 2.20 |
| R87FRF57-Y0.12KW | 599 | 0.12KW | 2.30r/min | 360N.m | 86.5kg | 20000N | 4.30 |
R87FRF57減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87FRF57-Y0.18KW | 1489 | 0.18KW | 0.89r/min | 1690N.m | 87kg | 15900N | 0.90 |
| R87FRF57-Y0.18KW | 1395 | 0.18KW | 0.95r/min | 1580N.m | 87kg | 16700N | 1.00 |
| R87FRF57-Y0.18KW | 1232 | 0.18KW | 1.10r/min | 1380N.m | 87kg | 18000N | 1.10 |
| R87FRF57-Y0.18KW | 1145 | 0.18KW | 1.20r/min | 1270N.m | 87kg | 18600N | 1.20 |
| R87FRF57-Y0.18KW | 1037 | 0.18KW | 1.30r/min | 1140N.m | 87kg | 19200N | 1.35 |
| R87FRF57-Y0.18KW | 931 | 0.18KW | 1.40r/min | 1010N.m | 87kg | 19800N | 1.50 |
| R87FRF57-Y0.18KW | 802 | 0.18KW | 1.60r/min | 860N.m | 87kg | 20000N | 1.80 |
| R87FRF57-Y0.18KW | 1524 | 0.18KW | 0.87 r/min | 1680N.m | 87kg | 15900N | 0.90 |
| R87FRF57-Y0.18KW | 1303 | 0.18KW | 1.00r/min | 1390N.m | 87kg | 17900N | 1.10 |
| R87FRF57-Y0.18KW | 1143 | 0.18KW | 1.20r/min | 1220N.m | 87kg | 18900N | 1.25 |
| R87FRF57-Y0.18KW | 885 | 0.18KW | 1.50r/min | 970N.m | 87kg | 19900N | 1.60 |
| R87FRF57-Y0.18KW | 776 | 0.18KW | 1.70r/min | 850N.m | 87kg | 20000N | 1.80 |
R87FRF57減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87FRF57-Y0.25KW | 1145 | 0.25KW | 1.10r/min | 1850N.m | 91kg | 10700N | 0.85 |
| R87FRF57-Y0.25KW | 1037 | 0.25KW | 1.20r/min | 1660N.m | 91kg | 16000N | 0.95 |
| R87FRF57-Y0.25KW | 931 | 0.25KW | 1.40r/min | 1480N.m | 91kg | 17400N | 1.05 |
| R87FRF57-Y0.25KW | 802 | 0.25KW | 1.60r/min | 1260N.m | 91kg | 18600N | 1.20 |
| R87FRF57-Y0.25KW | 1143 | 0.25KW | 1.10r/min | 1790N.m | 91kg | 14700N | 0.85 |
| R87FRF57-Y0.25KW | 885 | 0.25KW | 1.50r/min | 1420N.m | 91kg | 17800N | 1.10 |
| R87FRF57-Y0.25KW | 776 | 0.25KW | 1.70r/min | 1240N.m | 91kg | 18700N | 1.25 |
| R87FRF57-Y0.25KW | 685 | 0.25KW | 1.90r/min | 1100N.m | 91kg | 19400N | 1.40 |
| R87FRF57-Y0.25KW | 599 | 0.25KW | 2.20r/min | 920N.m | 91kg | 20000N | 1.65 |
| R87FRF57-Y0.25KW | 525 | 0.25KW | 2.50r/min | 810N.m | 91kg | 20000N | 1.90 |
| R87FRF57-Y0.25KW | 456 | 0.25KW | 2.80r/min | 715N.m | 91kg | 20000N | 2.20 |
| R87FRF57-Y0.25KW | 268 | 0.25KW | 4.90r/min | 415N.m | 91kg | 20000N | 3.70 |
R87FRF57減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87FRF57-Y0.37KW | 802 | 0.37KW | 1.70r/min | 1810N.m | 91.5kg | 13800N | 0.85 |
| R87FRF57-Y0.37KW | 754 | 0.37KW | 1.80r/min | 1690N.m | 91.5kg | 15800N | 0.90 |
| R87FRF57-Y0.37KW | 649 | 0.37KW | 2.10r/min | 1440N.m | 91.5kg | 17600N | 1.05 |
| R87FRF57-Y0.37KW | 776 | 0.37KW | 1.80r/min | 1770N.m | 91.5kg | 15100N | 0.85 |
| R87FRF57-Y0.37KW | 685 | 0.37KW | 2.00r/min | 1560N.m | 91.5kg | 16800N | 1.00 |
| R87FRF57-Y0.37KW | 599 | 0.37KW | 2.30r/min | 1330N.m | 91.5kg | 18300N | 1.15 |
| R87FRF57-Y0.37KW | 525 | 0.37KW | 2.60r/min | 1170N.m | 91.5kg | 19100N | 1.30 |
| R87FRF57-Y0.37KW | 456 | 0.37KW | 3.00r/min | 1020N.m | 91.5kg | 19700N | 1.50 |
| R87FRF57-Y0.37KW | 268 | 0.37KW | 5.20r/min | 595N.m | 91.5kg | 20000N | 2.60 |
| R87FRF57-Y0.37KW | 236 | 0.37KW | 5.80r/min | 525N.m | 91.5kg | 20000N | 2.90 |
| R87FRF57-Y0.37KW | 538 | 0.37KW | 2.60r/min | 1260N.m | 91.5kg | 18700N | 1.25 |
| R87FRF57-Y0.37KW | 472 | 0.37KW | 2.90r/min | 1100N.m | 91.5kg | 19400N | 1.40 |
| R87FRF57-Y0.37KW | 400 | 0.37KW | 3.40r/min | 920N.m | 91.5kg | 20000N | 1.65 |
| R87FRF57-Y0.37KW | 361 | 0.37KW | 3.80r/min | 830N.m | 91.5kg | 20000N | 1.85 |
R87FRF57減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87FRF57-Y0.55KW | 525 | 0.55KW | 2.60r/min | 1780N.m | 96kg | 15000N | 0.85 |
| R87FRF57-Y0.55KW | 456 | 0.55KW | 3.00r/min | 1550N.m | 96kg | 16900N | 1.00 |
| R87FRF57-Y0.55KW | 398 | 0.55KW | 3.50r/min | 1340N.m | 96kg | 18200N | 1.15 |
| R87FRF57-Y0.55KW | 352 | 0.55KW | 3.90r/min | 1190N.m | 96kg | 19000N | 1.30 |
| R87FRF57-Y0.55KW | 305 | 0.55KW | 4.50r/min | 1020N.m | 96kg | 19700N | 1.50 |
| R87FRF57-Y0.55KW | 472 | 0.55KW | 2.90r/min | 1660N.m | 96kg | 16100N | 0.95 |
| R87FRF57-Y0.55KW | 400 | 0.55KW | 3.40r/min | 1400N.m | 96kg | 17900N | 1.10 |
| R87FRF57-Y0.55KW | 361 | 0.55KW | 3.80r/min | 1260N.m | 96kg | 18700N | 1.25 |
R87FRF57減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87FRF57-Y0.75KW | 398 | 0.75KW | 3.60r/min | 1790N.m | 97kg | 15000N | 0.85 |
| R87FRF57-Y0.75KW | 352 | 0.75KW | 4.10r/min | 1580N.m | 97kg | 16700N | 1.00 |
| R87FRF57-Y0.75KW | 305 | 0.75KW | 4.70r/min | 1360N.m | 97kg | 18100N | 1.15 |
| R87FRF57-Y0.75KW | 268 | 0.75KW | 5.40r/min | 1200N.m | 97kg | 18900N | 1.30 |
| R87FRF57-Y0.75KW | 236 | 0.75KW | 6.10r/min | 1060N.m | 97kg | 19600N | 1.45 |
| R87FRF57-Y0.75KW | 361 | 0.75KW | 4.00r/min | 1660N.m | 97kg | 16000N | 0.95 |
| R87FRF57-Y0.75KW | 300 | 0.75KW | 4.80r/min | 1370N.m | 97kg | 18000N | 1.10 |
| R87FRF57-Y0.75KW | 256 | 0.75KW | 5.60r/min | 1160N.m | 97kg | 19100N | 1.35 |
R87FRF57減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87FRF57-Y1.1KW | 268 | 1.1KW | 5.30r/min | 1810N.m | 101kg | 13600N | 0.85 |
| R87FRF57-Y1.1KW | 236 | 1.1KW | 6.00r/min | 1600N.m | 101kg | 16600N | 0.95 |
| R87FRF57-Y1.1KW | 209 | 1.1KW | 6.80r/min | 1400N.m | 101kg | 17900N | 1.10 |
| R87FRF57-Y1.1KW | 256 | 1.1KW | 5.60r/min | 1750N.m | 101kg | 15300N | 0.90 |
| R87FRF57-Y1.1KW | 232 | 1.1KW | 6.10r/min | 1590N.m | 101kg | 16600N | 0.95 |
| R87FRF57-Y1.1KW | 195 | 1.1KW | 7.30r/min | 1340N.m | 101kg | 18200N | 1.15 |
R88R58減速器減速比：195比減速器,209比齒輪減速馬達,232比減速器,236比減速器,256比減速器,268比減速器,300比減速器,305比減速器,352比減速器,361比減速器,398比減速器,400比減速器,456比減速器,472比減速器,525比減速器,538比減速器,599比減速器,649比減速器,685比減速器,754比減速器,776比減速器,802比減速器,885比減速器,931比減速器,1037比減速器,1143比減速器,1145比減速器,1232比減速器,1303比減速器,1395比減速器,1489比減速器,1524比減速器,1733比減速器,1737比減速器,1930比減速器,1961比減速器,2129比減速器,2595比減速器,2873比減速器。
R88R58減速機電機安裝尺寸：輸出軸Φ50+鍵3.5（可定做），高295*寬293*長559（帶輸出軸）
R88R58減速電機輸出轉數：0.48轉減速電機,0.53轉減速電機,0.65轉減速電機,0.7轉臥式減速機,0.72轉減速電機,0.79轉減速電機,0.8轉減速電機,0.87轉減速電機,0.89轉減速電機,0.91轉減速電機,0.95轉減速電機,1轉減速電機,1.1轉減速電機,1.2轉減速電機,1.3轉減速電機,1.4轉減速電機,1.5轉減速電機,1.6轉減速電機,1.7轉減速電機,1.8轉減速電機,1.9轉減速電機,2轉減速電機,2.1轉減速電機,2.2轉減速電機,2.3轉減速電機,2.5轉減速電機,2.6轉減速電機,2.8轉減速電機,2.9轉減速電機,3轉減速電機,3.4轉減速電機,3.5轉減速電機,3.6轉減速電機,3.8轉減速電機,3.9轉減速電機,4轉減速電機,4.1轉減速電機,4.5轉減速電機,4.7轉減速電機,4.8轉減速電機,4.9轉減速電機,5.2轉減速電機,5.3轉減速電機,5.4轉減速電機,5.6轉減速電機,5.8轉減速電機,6轉減速電機,6.1轉減速電機,6.8轉減速電機,7.3轉減速電機。
R88R58減速箱電機輸出扭矩：360N.m減速箱,415N.m減速箱,450N.m減速箱,510N.m減速箱,525N.m減速箱,580N.m減速箱,595N.m減速箱,710N.m減速箱,715N.m減速箱,810N.m減速箱,830N.m減速箱,850N.m減速箱,860N.m減速箱,920N.m減速箱,970N.m減速箱,1000N.m減速箱,1010N.m減速箱,1020N.m減速箱,1060N.m減速箱,1100N.m減速箱,1120N.m減速箱,1140N.m減速箱,1160N.m減速箱,1170N.m減速箱,1190N.m減速箱,1200N.m減速箱,1220N.m減速箱,1240N.m減速箱,1260N.m減速箱,1270N.m減速箱,1300N.m減速箱,1330N.m減速箱,1340N.m減速箱,1360N.m減速箱,1370N.m減速箱,1380N.m減速箱,1390N.m減速箱,1400N.m減速箱,1420N.m減速箱,1430N.m減速箱,1440N.m減速箱,1480N.m減速箱,1550N.m減速箱,1560N.m減速箱,1580N.m減速箱,1590N.m減速箱,1600N.m減速箱,1660N.m減速箱,1680N.m減速箱,1690N.m減速箱,1750N.m減速箱,1760N.m減速箱,1770N.m減速箱,1780N.m減速箱,1790N.m減速箱,1810N.m減速箱,1850N.m減速箱。

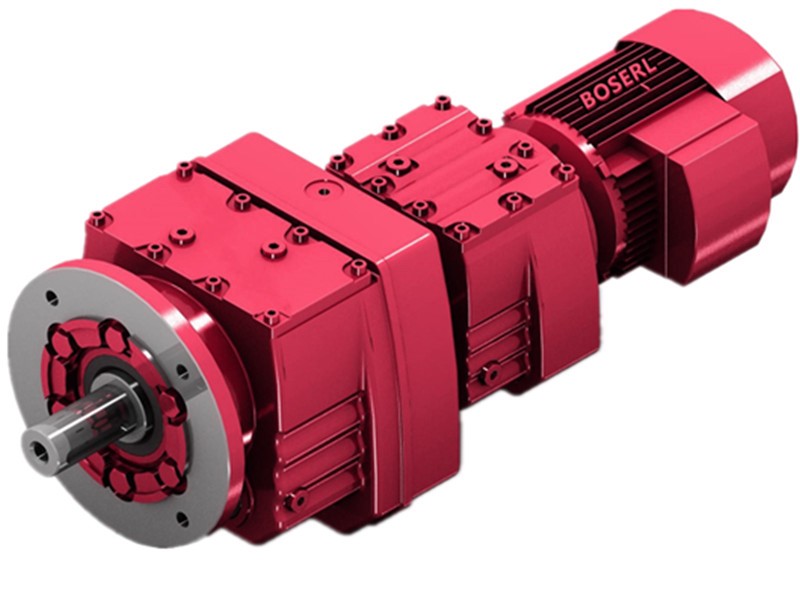

R88R58減速機電機各種輸出實物圖：
R88R58減速馬達型號：
R87FR57DM63L4,R87FR57DM63M4,R87FR57DM63MS4,R87FR57DM63S4,R87FR57DM71D4,R87FR57DM71M4,R87FR57DM71MS4,R87FR57DM71S4,R87FR57DM80K4,R87FR57DM80M4,R87FR57DM80MK4,R87FR57DM80N4,R87FR57DM80S4,R87FR57DM90L4,R87FR57DM90M4,R87FR57DM90S4,R87FR57DR63L4,R87FR57DR63M4,R87FR57DR63MS4,R87FR57DR63S4,R87FR57DR71D4,R87FR57DR71M4,R87FR57DR71MS4,R87FR57DR71S4,R87FR57DR80K4,R87FR57DR80M4,R87FR57DR80MK4,R87FR57DR80N4,R87FR57DR80S4,R87FR57DR90L4,R87FR57DR90M4,R87FR57DR90S4,R87FR57DRE63L4,R87FR57DRE63M4,R87FR57DRE63MS4,R87FR57DRE63S4,R87FR57DRE71D4,R87FR57DRE71M4,R87FR57DRE71MS4,R87FR57DRE71S4,R87FR57DRE80K4,R87FR57DRE80M4,R87FR57DRE80MK4,R87FR57DRE80N4,R87FR57DRE80S4,R87FR57DRE90L4,R87FR57DRE90M4,R87FR57DRE90S4,R87FR57DRN63L4,R87FR57DRN63M4,R87FR57DRN63MS4,R87FR57DRN63S4,R87FR57DRN71D4,R87FR57DRN71M4,R87FR57DRN71MS4,R87FR57DRN71S4,R87FR57DRN80K4,R87FR57DRN80M4,R87FR57DRN80MK4,R87FR57DRN80N4,R87FR57DRN80S4,R87FR57DRN90L4,R87FR57DRN90M4,R87FR57DRN90S4,R87FR57DRS63L4,R87FR57DRS63M4,R87FR57DRS63MS4,R87FR57DRS63S4,R87FR57DRS71D4,R87FR57DRS71M4,R87FR57DRS71MS4,R87FR57DRS71S4,R87FR57DRS80K4,R87FR57DRS80M4,R87FR57DRS80MK4,R87FR57DRS80N4,R87FR57DRS80S4,R87FR57DRS90L4,R87FR57DRS90M4,R87FR57DRS90S4,R87FR57DT63L4,R87FR57DT63M4,R87FR57DT63MS4,R87FR57DT63S4,R87FR57DT71D4,R87FR57DT71M4,R87FR57DT71MS4,R87FR57DT71S4,R87FR57DT80K4,R87FR57DT80M4,R87FR57DT80MK4,R87FR57DT80N4,R87FR57DT80S4,R87FR57DT90L4,R87FR57DT90M4,R87FR57DT90S4,R87FR57DV63L4,R87FR57DV63M4,R87FR57DV63MS4,R87FR57DV63S4,R87FR57DV71D4,R87FR57DV71M4,R87FR57DV71MS4,R87FR57DV71S4,R87FR57DV80K4,R87FR57DV80M4,R87FR57DV80MK4,R87FR57DV80N4,R87FR57DV80S4,R87FR57DV90L4,R87FR57DV90M4,R87FR57DV90S4,R87FR57DVE63L4,R87FR57DVE63M4,R87FR57DVE63MS4,R87FR57DVE63S4,R87FR57DVE71D4,R87FR57DVE71M4,R87FR57DVE71MS4,R87FR57DVE71S4,R87FR57DVE80K4,R87FR57DVE80M4,R87FR57DVE80MK4,R87FR57DVE80N4,R87FR57DVE80S4,R87FR57DVE90L4,R87FR57DVE90M4,R87FR57DVE90S4,R87FRF57-Y0.12KW,R87FRF57-Y0.18KW,R87FRF57-Y0.25KW,R87FRF57-Y0.37KW,R87FRF57-Y0.55KW,R87FRF57-Y0.75KW,R87FRF57-Y1.1KW,R87FRF57-YEJ0.12KW,R87FRF57-YEJ0.18KW,R87FRF57-YEJ0.25KW,R87FRF57-YEJ0.37KW,R87FRF57-YEJ0.55KW,R87FRF57-YEJ0.75KW,R87FRF57-YEJ1.1KW,R87FRF57-YVP0.12KW,R87FRF57-YVP0.18KW,R87FRF57-YVP0.25KW,R87FRF57-YVP0.37KW,R87FRF57-YVP0.55KW,R87FRF57-YVP0.75KW,R87FRF57-YVP1.1KW,R87FRF57-YVPEJ0.12KW,R87FRF57-YVPEJ0.18KW,R87FRF57-YVPEJ0.25KW,R87FRF57-YVPEJ0.37KW,R87FRF57-YVPEJ0.55KW,R87FRF57-YVPEJ0.75KW,R87FRF57-YVPEJ1.1KW。
R88R58減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ynqingyi.com/product/list-rxiliejiansuji-cn.html
推薦型號：R88減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R87FRF57-Y0.12KW R87FRF57-Y0.18KW R87FRF57-Y0.25KW R87FRF57-Y0.37KW R87FRF57-Y0.55KW R87FRF57-Y0.75KW R87FRF57-Y1.1KW
